RC8X Radio System: Unleash Your Inner Pilot with the R8FG & R4FGM Combo! Fly High!
Alright, check this out: Wanna inject some serious awesome into your life? We're talking pure, unadulterated, gotta-have-it-now goodness. This isn't just a thing, it's a vibe, a statement, a whole freakin' lifestyle upgrade. Prepare to turn heads, drop jaws, and maybe even accidentally become the coolest cat on the block. Don't just buy it, *own* it. You deserve this. Get it while you still can, because frankly, it’s gonna sell out faster than a free taco giveaway.

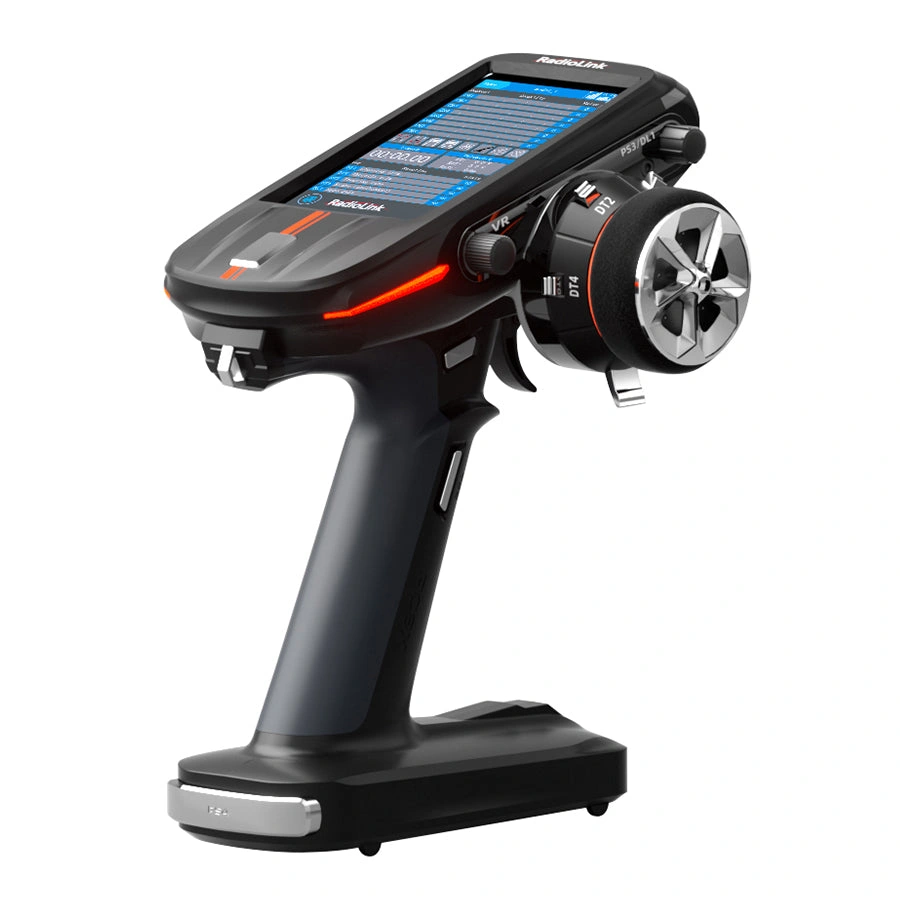

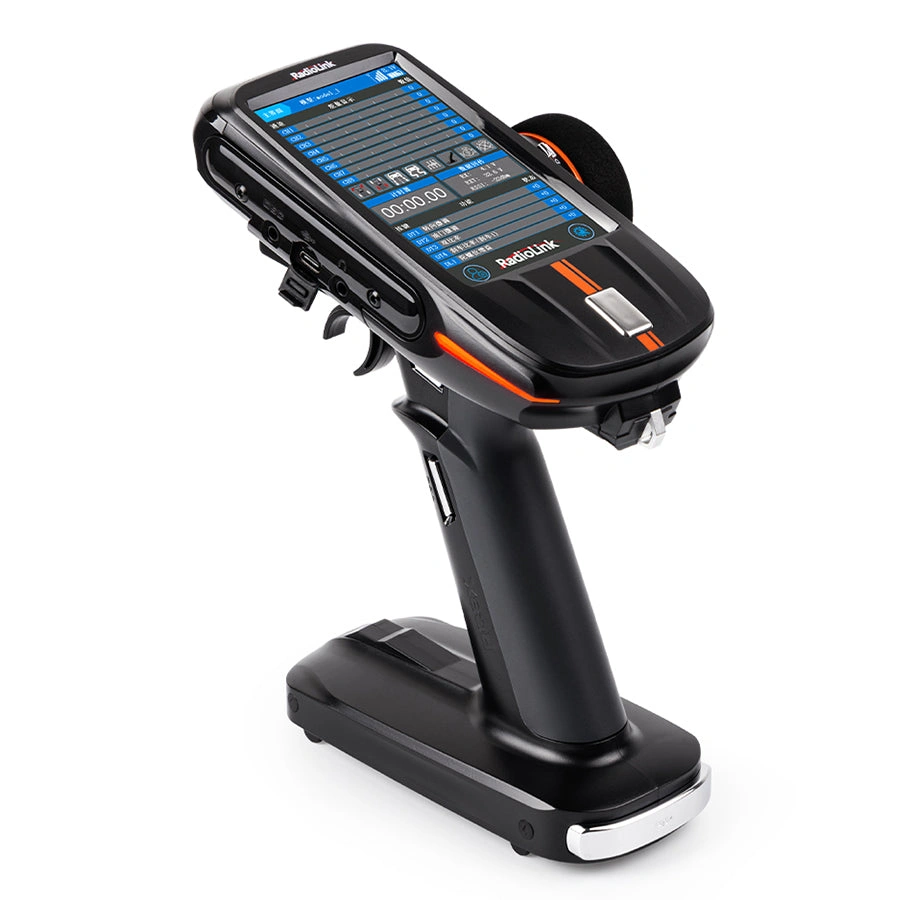

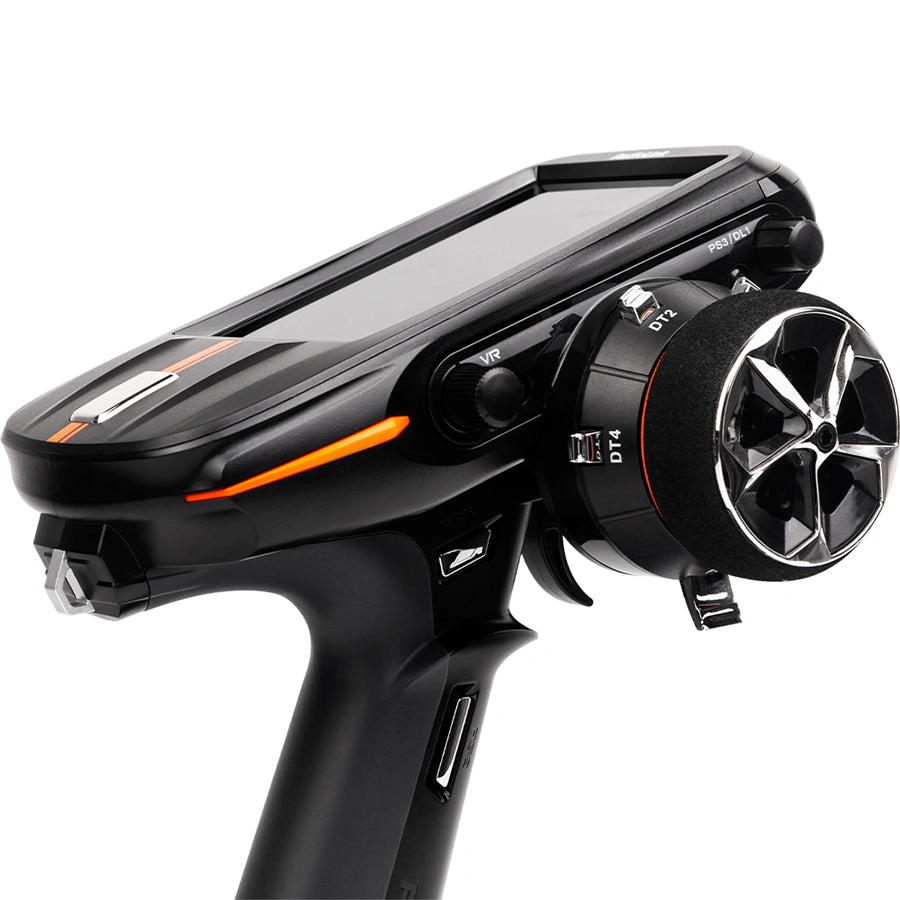

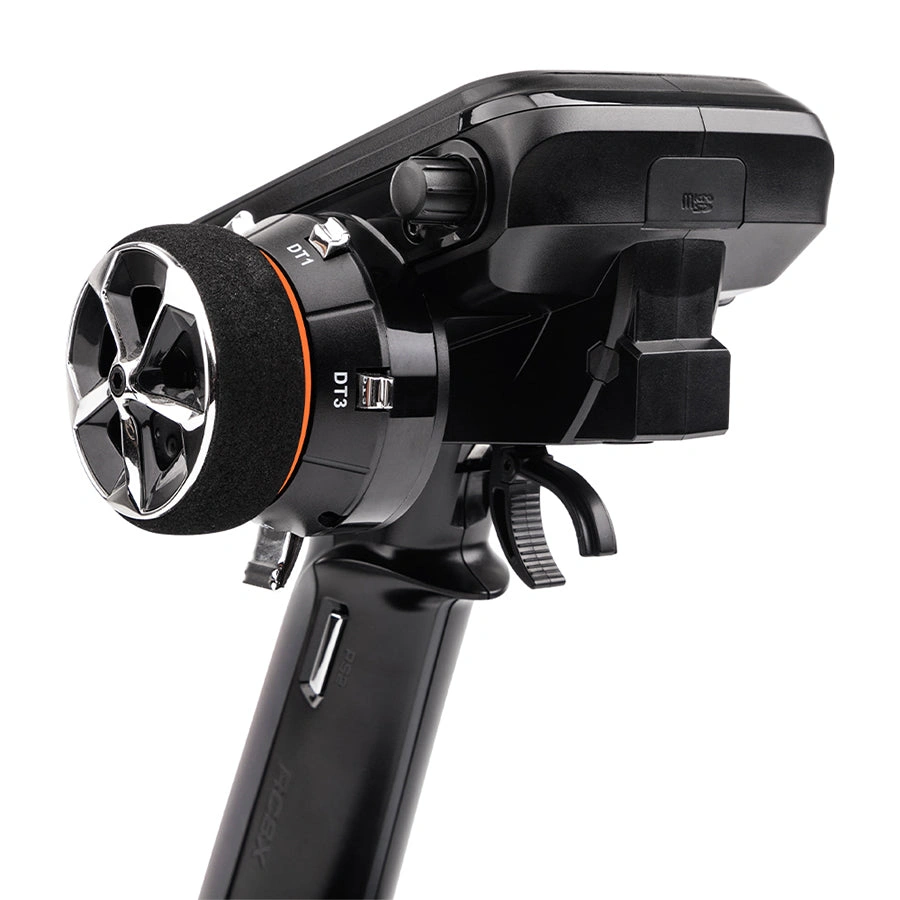

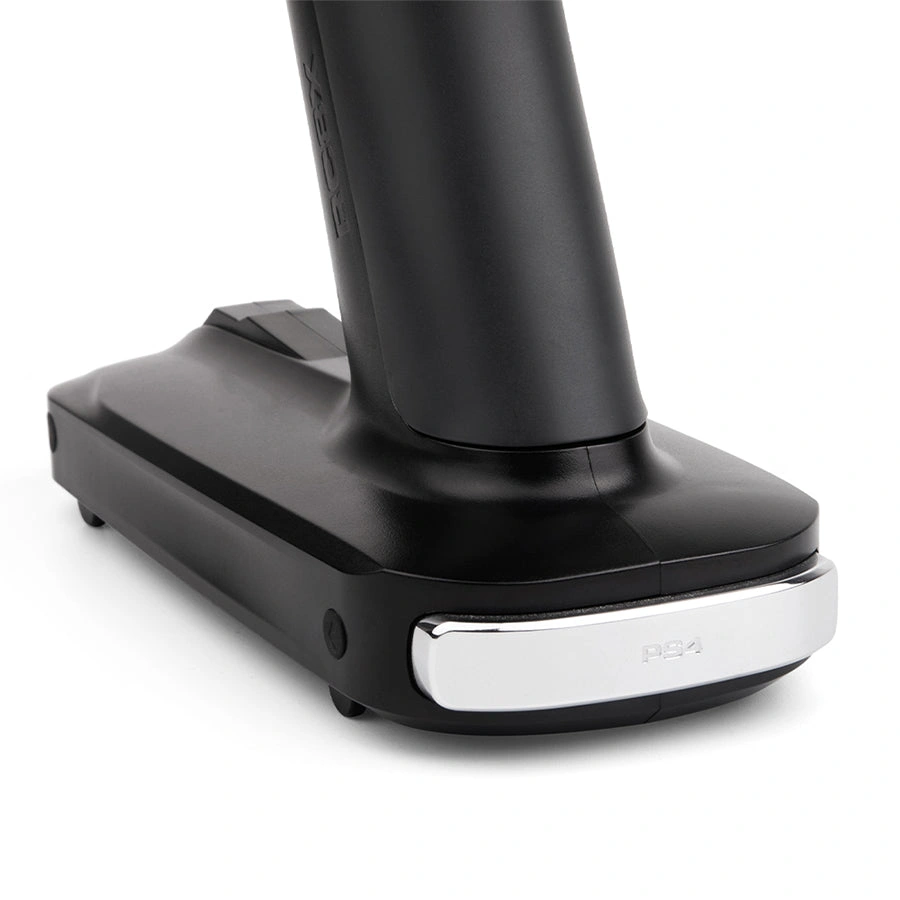

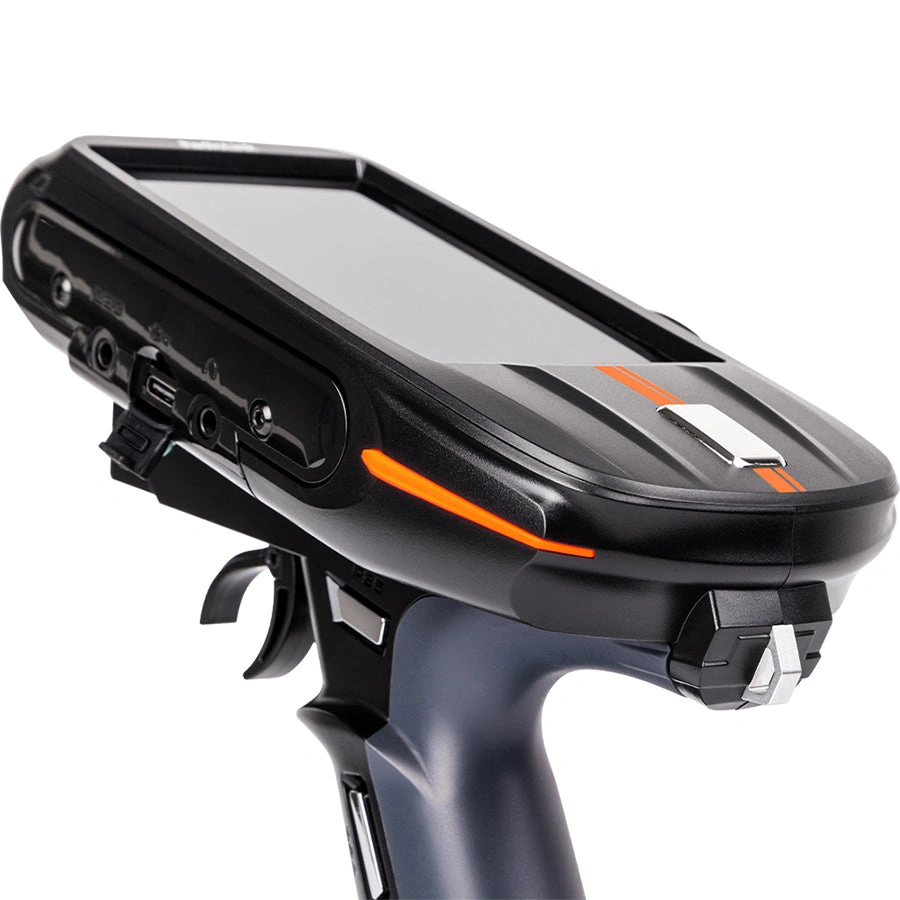

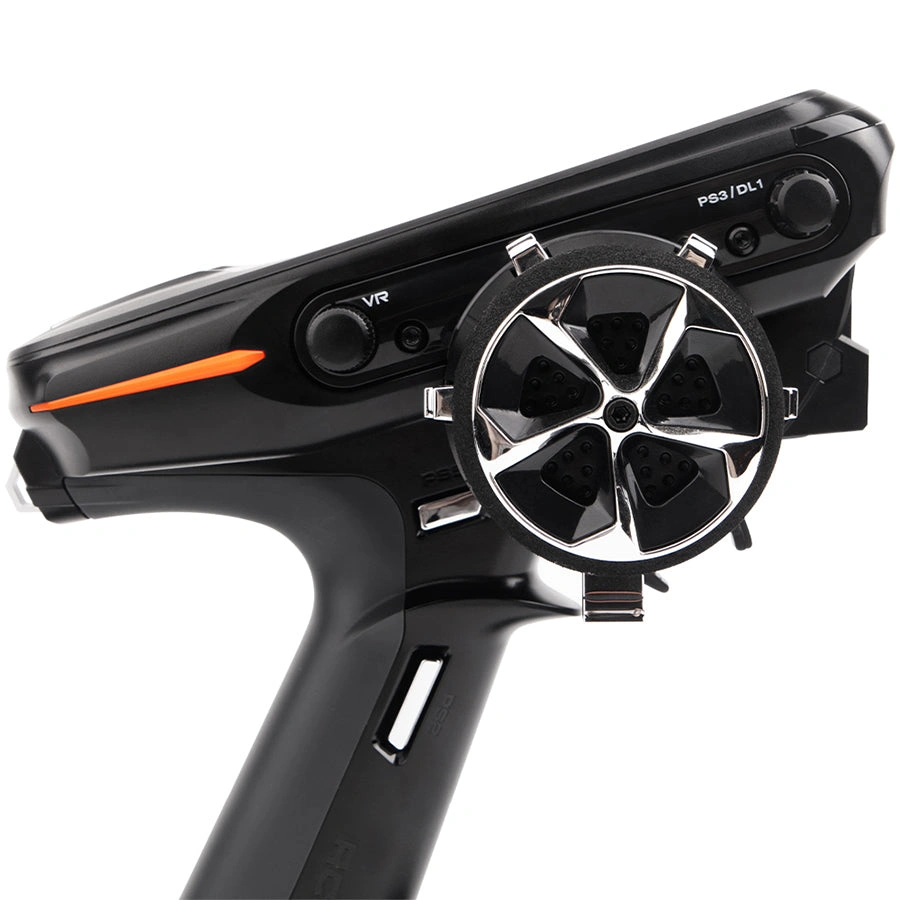

RadioLink (#RC8X/R8FG) RC8X w/ R8FG & R4FGM 2.4GHz Radio System
Open the Era of Model Remote Control Smart Machine
In terms of hardware, it has broken through the traditional MCU (microprocessor cortex-M) architecture of the remote control and adopts the application-level CPU (cortex-A) architecture that supports Linux (android).
In terms of software, the general but non-real-time Linux system on the CPU architecture is abandoned, and it is challenging to adopt an efficient RTOS real-time operating system to achieve the perfect combination of multimedia interaction and real-time control.
Far More Than Fast
RC8X has 4.3 inches, 800*480 full-color, backlit IPS touch screen, and fast scroll without lag. There are zero delays in fast-switching function pages. Mobile phone-level screen refresh experience.
Get More Variety Fun
The DSC port of RC8X can be set as the Simulator Function (support VRC Pro, CarX, Assetto Corsa Competizione, etc. simulators), you can also have a wonderful online showdown with friends at home in isolation, not boring at home.
The DSC port of RC8X can be set as the FPV Head Track Function (3-axis or 2-axis track can be selected) to fully enjoy the funny of First-Person View of racing or crawling.
The DSC port of RC8X can be set as the TBS Crossfire Function, which greatly increases the remote-control distance in high power mode, and remote fun off-road is not a problem.
600 Meters Ground Control Distance
With the same FHSS spread spectrum of AT9S Pro and 67 channels, pseudo-random frequency hopping makes RC8X have the superior anti-interference ability both at the same frequency band and different frequency bands. RC8X achieves an excellent user experience even if you are crawling, bashing, or boating in harsh conditions.
Imagination is Endless, Creativity is Endless
Setting Menu, font, desktop, system theme, voice broadcast content, voice broadcast form, language, etc. can be customized, and you can achieve a totally unique 8 channels transmitter without one code to modify.
8 Channels for Multiple Types of Models
RC8X is an ideal partner for all types of RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car, GP RC Car, EP RC Car, Sailboats, Trimaran, Bait Boat, Remote Controlled Lifebuoy, and other types of RC cars or boats.
Multiple Languages
The optional language menu includes Chinese, English, Japanese, Spanish, German, Russian, and French. Also, the voice broadcast can be customed with multiple languages.
Multiple Mix Control such as 4WS
4WS mixing is designed for crawlers, timber trucks, and other 4WS-type vehicles.
Brake mixing makes the front and rear wheels of 1/5 gas power cars and other large cars can be adjusted independently.
Tank mixing is designed for the dual engine intended for vehicles such as tanks.
Tilt mixing is designed for boats, easy to set the parameters and fully enjoy the boating.
Real-time Built-In Telemetry of Model Battery Voltage
Telemetry is capable of RSSI, receiver, and model battery voltage. RSSI and receiver voltage data will display once the binding is complete. The model voltage will display by connecting the wire to the ESC, battery, and Telemetry port of receiver R8FG/R8F/R7FG, no extra module is needed.
Telemetry of maximum 8S (33.6V) battery supported.
Receiver with Gyro Integrated and Customizable Gyro Sensitivity
Standard receiver R8FG packed is the receiver with built-in gyro and supports high voltage servo.
It is anti-slip and keeps the uni-direction. With the integrated gyro in R8FG installed, the vehicle turns more smoothly, and drifting from high speed can be prevented.
The easy setting ensures better control of gyro stabilization. Gyro sensitivity can be adjusted by CH8 which is controlled by DL1 switch by default to maximize or minimize the gyro function.
Reverse Polarity Protection Circuit
RC8X is easily adapted for various battery layouts with wide operating voltage tolerance: 8 pieces of AAA batteries, a 2S-4S LiPo battery, a 6S Ni-MH battery or powered by a computer or mobile power bank connect via Type-C cable.
Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.
Water Splash Proof (IPX4) for Receiver R8FG
A receiver R8FG will pack with RC8X.
The PCB board and pins of R8FG have the same waterproof treatment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4.
IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).
Ergonomically Designed for Hours of Fun
Base on the feedback of hundreds of experienced RC racers, we redesigned the throttle trigger, the thickness of the grip, and the location of each switch to achieve a better comfortable driving experience.
Lefty Friendly: The left and right installation directions of the wheel section can be reversed.
Wide Receivers Compatible
RC8X is packed with a receiver R8FG.
R8FG is an 8 channels receiver with gyro built-in, high voltage servo support, and model voltage telemetry support.
R8FG also supports SBUS signal output that compatible with the SBUS servo to make the connection is more convenient and simpler.
RC8X is also compatible with the 4 channels mini receivers R4FGM/R4F designed for Mini RC cars, the 6 channels receivers R6FG/R6F, the 7 channels receivers R7FG, and the 8 channels long control distance receivers R8EF/R8F, which designed for RC boats.
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Channel Quantity: 8 channels
- Applicable Model Types: Cars(including Crawlers/Tanks/Caterpillars)/Boat/Robot
- Modulation Mode: GFSK
- Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
- Storage Model Quantity: 200 groups of models’ storage
- Antenna Length: Built-in antenna
- Control Range: 600m (1968.5ft) (Maximum range tested in unobstructed areas free of interference)
- Screen: 4.3 inches, 800*480 full-color, backlit IPS touchscreen
- Operating Voltage: 7-17V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery) / 5.5V(powered by computer or mobile power bank via Type-C cable)
- Operating Current: 250mA±[email protected](the IPS screen light on), 190mA±[email protected](the IPS screen light off)
- RF Power: <20dbm
- Channel resolution: 4096 with regular jitter of 0.5us
- Response Latency: Real 12ms
- Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
- Compatible Receiver: R8FG(Std)/R8F/R8EF/R7FG/R6FG/R6F/R4FGM/R4F
- Voice Broadcast: Supported
- Menu Customized: Setting Menu, font, desktop, system theme, etc., can be customized
- CRSF Protocol Supported: RC8X is compatible with TBS Crossfire
- FPV Head Track Function: Supported
- Dimensions: 121 x 163 x 209mm (4.76' x 6.42' x 8.23')
- Weight: 438.5g (15.47oz)
- Battery Case Dimension: 92 x 52 x 14.5mm (3.62' x 2.05' x 0.57')
- Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Size: 35 x 24 x 13.5mm (1.38' x 0.94' x 0.53')
- Weight: 10.5g (0.37oz)
- Operating Voltage: 3-12V
- Operating Current: 35mA(5V)
- Channel Quantity: 8 channels
- Signal: SBUS&PPM&PWM
- Telemetry: Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage
- Gyro: Receiver with gyro integrated, customizable gyro sensitivity
- Water Splash Proof: The waterproof grade is IPX4
- Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot
- Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
- Control Range: 600 meters on the ground
- Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8FB(OTG)/T8S(BT)/T8S(OTG)
- Frequency: 2.4GHz ISM
- Channel: 4 channels
- Signal Output: PWM
- Model Application: Cars/Boats/Micro Airplane/Glider
- Spread Spectrum: FHSS 67-channel pseudo-random frequency hopping
- Antenna Length: 90mm (3.54')
- Voltage Range: 3-6V
- Operation Current: 30mA@5V
- Control Range: 400 meters(1312ft)
- Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
- Size: 25 x 13mm (0.98' x 0.51')
- Weight: 3g(0.11oz)
- RadioLink (#RC8X/R8FG) RC8X w/ R8FG 2.4GHz Radio System (1 pc)
- R8FG Receiver (1 pc)
- R4FGM Receiver (1 pc)
- 32GB TF (MicroSD) Card (1 pc)
- EXT Connect Cable (for R8FG) (1 pc)
- Lanyard (1 pc)
- Radio Carry Bag (1 pc)
- Manual
